产品名称：1500MPa 0.3mm超硬金刚网
品牌名称：冀安筛网
产品材质：304不锈钢
Material类型(材质): 304不锈钢 304 Stainless steel
Process工序：拔丝工艺 Wire drawing process

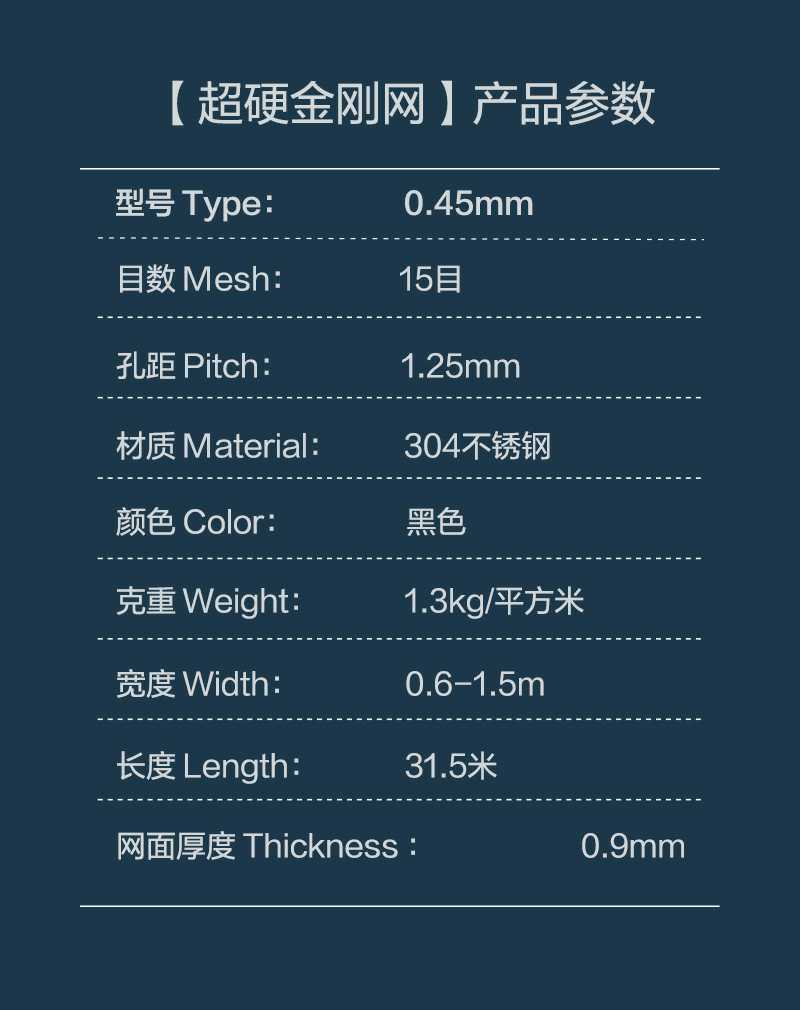

Warp thread count 经线密度：15目 Mesh
Weft thread count 纬线密度：15目 Mesh
Warp wire diameter 经线丝径：0.41mm +0.03/-0.03mm
Weft wire diameter 纬线丝径：0.41mm +0.03/-0.03mm
Weave编织：平纹编织 plain weaving
Weight (kg/m2)织物重量(kg/m2)：1.2kg
Elogation (%)延展率(%)：≥10%

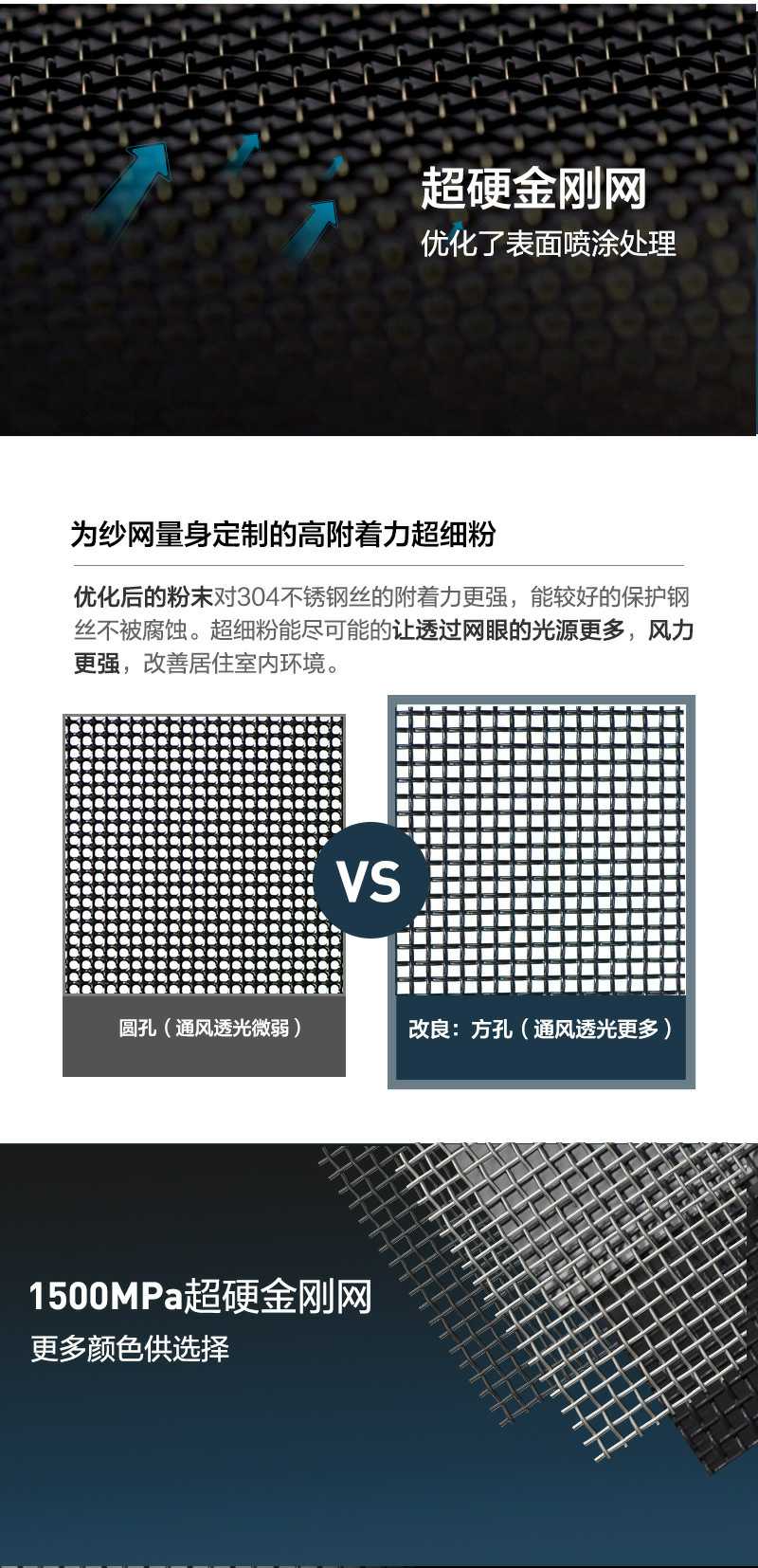

Coating涂层：复合树脂 Composite resin

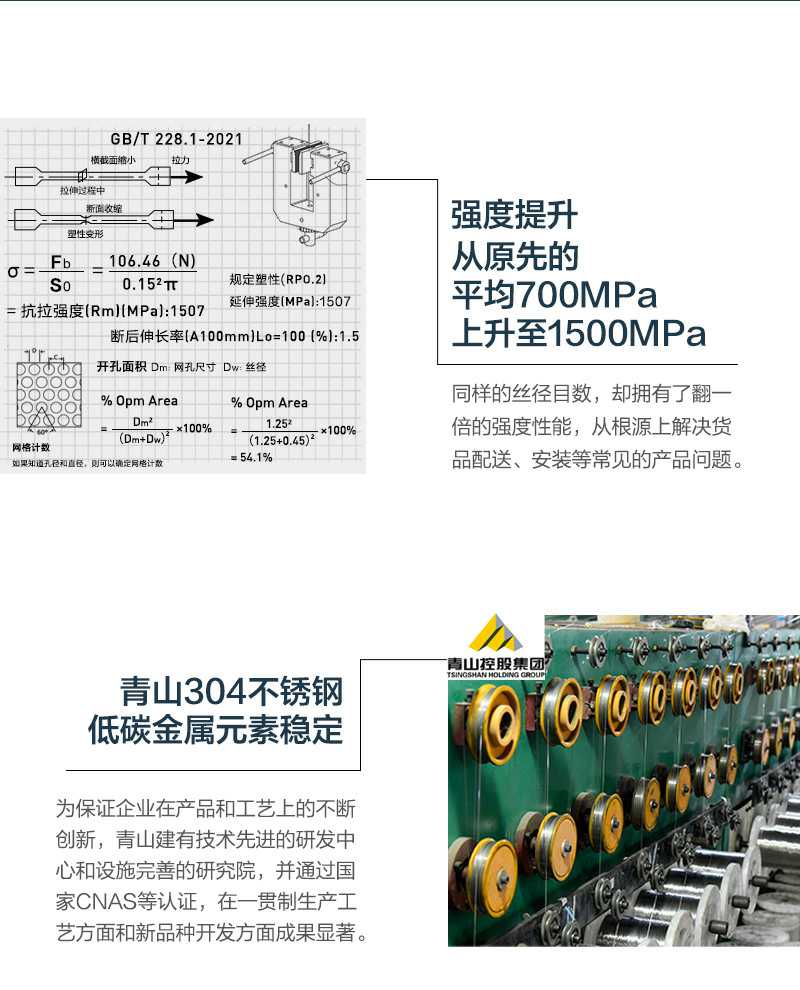

Tensile strength（MPa）抗拉强度（MPa）：1350-1550MPa
Coating Process 喷涂工艺：静电喷涂 Electrostatic spraying
Coating thickness（μm）涂层厚度（μm）：40μm
Curing conditions 固化条件：200°C / 5.25m/min 立炉 Vertical coating equipment

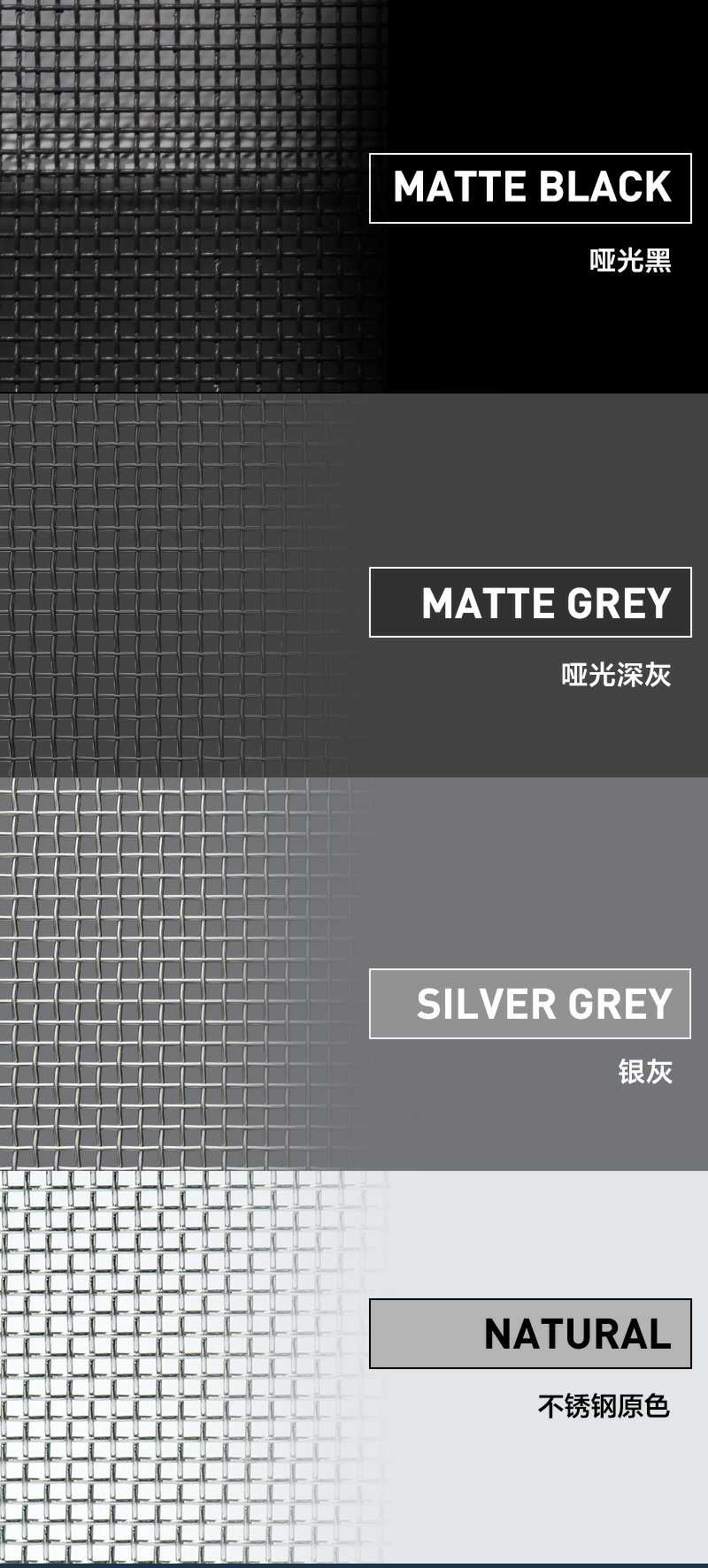

Color颜色：黑色 Black
Packing包装：纸箱 Carton
Ventilation rate通风率：57%
Open area ratio开孔率：57%
Aperture size孔径：1283μm
Light transmittance透光率：66%
Ultraviolet blocking rate紫外线阻隔率：55%
Infrared blocking rate红外线阻隔率：46%
Material类型(材质): 304不锈钢 304 Stainless steel
Process工序：拔丝工艺 Wire drawing process

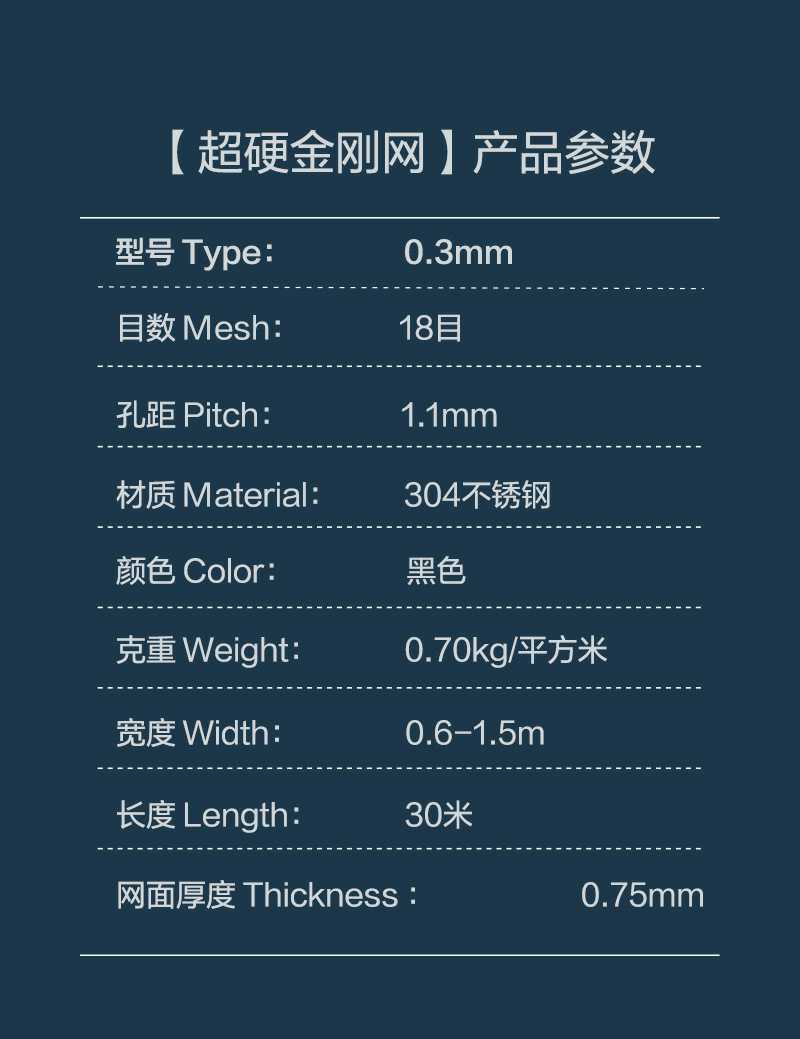

Warp thread count 经线密度：18目 Mesh
Weft thread count 纬线密度：16目 Mesh
Warp wire diameter 经线丝径：0.3mm +0.03/-0.03mm
Weft wire diameter 纬线丝径：0.25mm +0.03/-0.03mm
Weave编织：平纹编织 plain weaving
Weight (kg/m2)织物重量(kg/m2)：0.75kg
Elogation (%)延展率(%)：≥10%
Coating涂层：复合树脂 Composite resin
Tensile strength（MPa）抗拉强度（MPa）：1350-1550MPa
Coating Process 喷涂工艺：静电喷涂 Electrostatic spraying
Coating thickness（μm）涂层厚度（μm）：30μm
Curing conditions 固化条件：200°C / 0.1m/min 平炉 horizontal coating equipment
Color颜色：黑色 Black
Packing包装：纸箱 Carton
Ventilation rate通风率：66%
Open area ratio开孔率：66%
Aperture size孔径：1111μm
Light transmittance透光率：76%
Ultraviolet blocking rate紫外线阻隔率：44%
Infrared blocking rate红外线阻隔率：36%

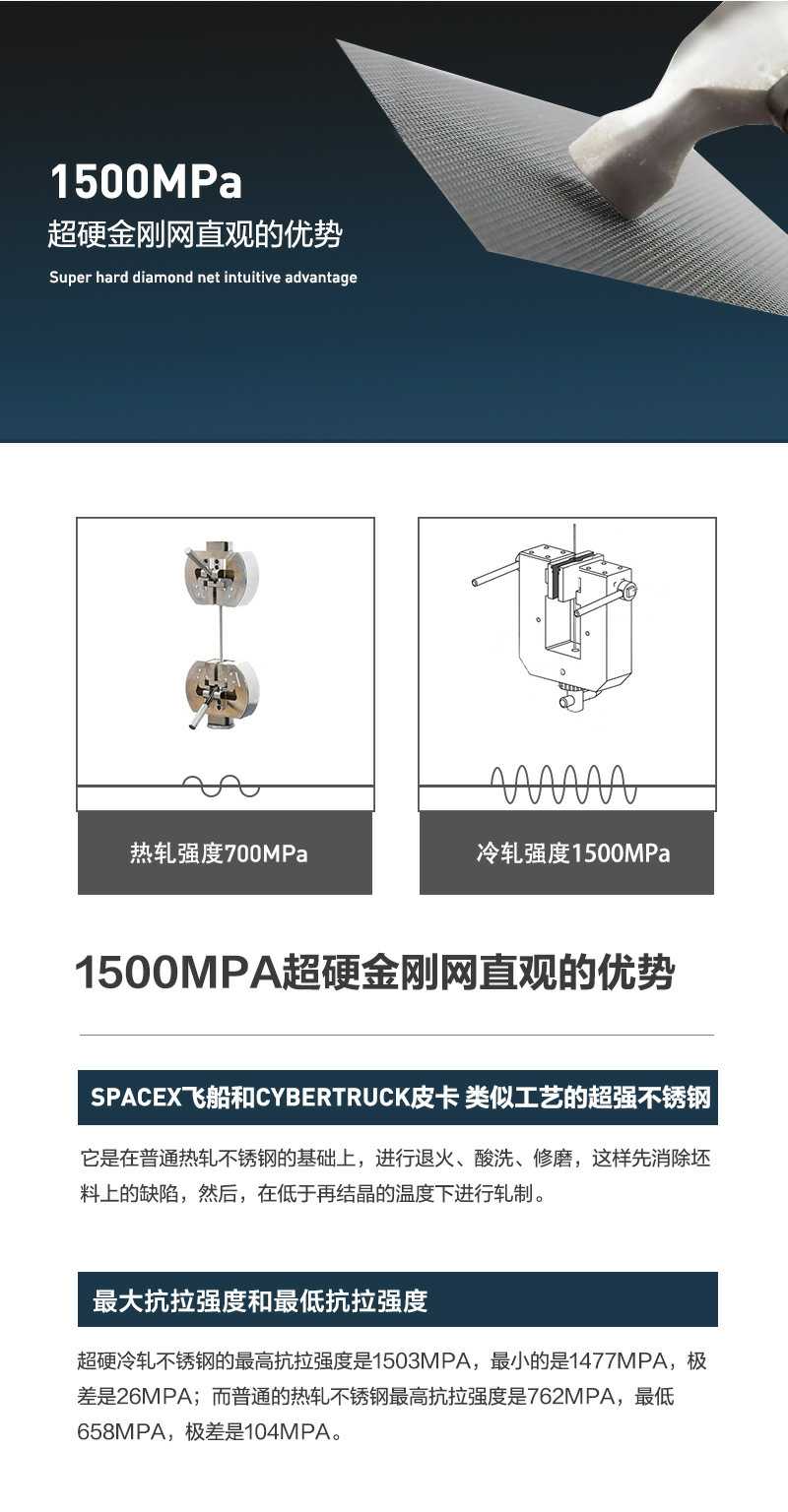

Product Features产品特点：1500MPa超硬金刚网采用超硬冷轧不锈钢材料，经过严格的测试，其平均抗拉强度为1482MPa，最高达到1503MPa，最低为1477MPa，极差仅为26MPa。与普通热轧不锈钢707MPa的抗拉强度和较大的104MPa极差相比，超硬冷轧不锈钢在编织过程中表现出更加均匀的软硬度，编织出的纱网平整度显著提升，减少了加工损耗及售后问题。该材料经过退火、酸洗、修磨等处理，最终在低温轧制下形成均匀且表面光滑的不锈钢，具备极高的抗拉强度、屈服强度和优异的松弛性能。类似的技术应用于马斯克的SPACEX飞船和CYBERTRUCK皮卡，体现了这款材料的高端与卓越性能。
1500MPa Stainless Steel Security Mesh is made from ultra-hard cold-rolled stainless steel, with an average tensile strength of 1482MPa, ranging from 1477MPa to 1503MPa, with a minimal difference of 26MPa. Compared to standard hot-rolled stainless steel with a tensile strength of 707MPa and a 104MPa variance, the cold-rolled version offers more uniform hardness and better mesh flatness, reducing production losses and after-sales issues. The material undergoes annealing, pickling, and polishing, resulting in smooth, high-tensile stainless steel with exceptional yield strength and stress relaxation. Similar technology is used in Elon Musk's SPACEX rockets and CYBERTRUCK, highlighting the material's premium quality and performance.
